Super Pulse precision0.1 mm dot with 0.1–10 ms fractional pulse control.
Precision Resurfacing

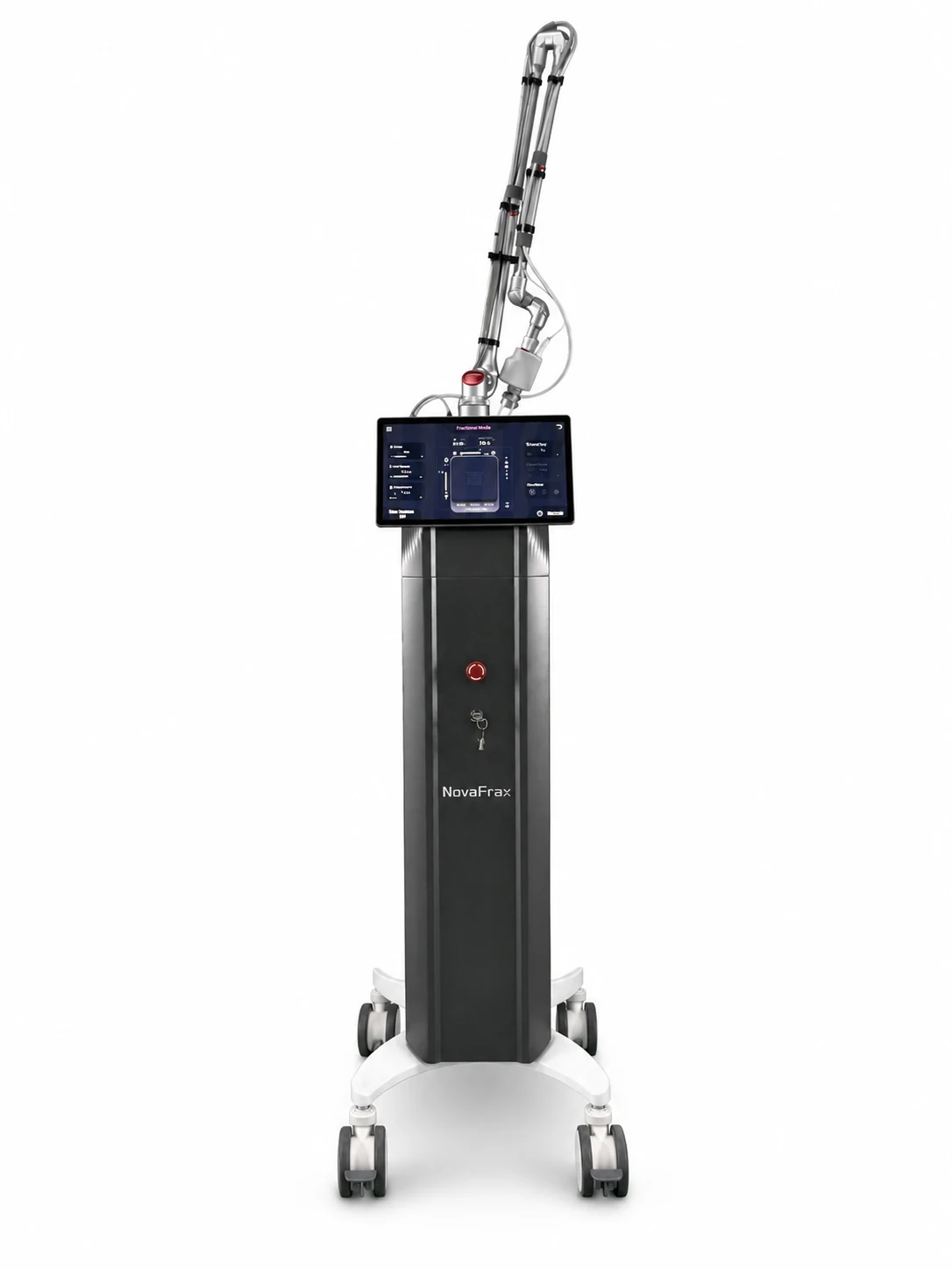

NovaFrax40W Fractional CO₂ Laser
An RF-excited 10600 nm CO₂ laser combining fractional resurfacing, surgical operation and specialized protocols in one Android-controlled platform.
10600 nm CO₂40W RF excited0.1 mm dot
NovaFrax
40WLaser power
0.1mmDot diameter
3Operating modes
Mode architecture
One CO₂ source. Three professional modes.
Choose the operating environment first, then refine pulse, scan and delivery parameters.
DOT0.1mm
PATTERN ENGINEFractional
Fractional
Patterned resurfacing
Static and dynamic scan options support controlled fractional delivery.
- 0.1 mm dot diameter
- Seven regular shapes plus custom patterns
- Superficial, deep or combined penetration
Performance architecture
Precision where it matters.
Control at every layer.
Six coordinated technologies connect beam precision, scan planning, pulse delivery and an Android-led professional workflow.
Flexible scan shapesSeven regular patterns plus a self-customized shape.
Triple penetration depthSuperficial, deep and combined delivery selections.
CoolDynamic scanRandomized delivery helps distribute localized thermal load.
Long-life RF sourceRated for more than 20,000 operating hours.
Android interfaceMode-led presets organize the professional workflow.
Product design

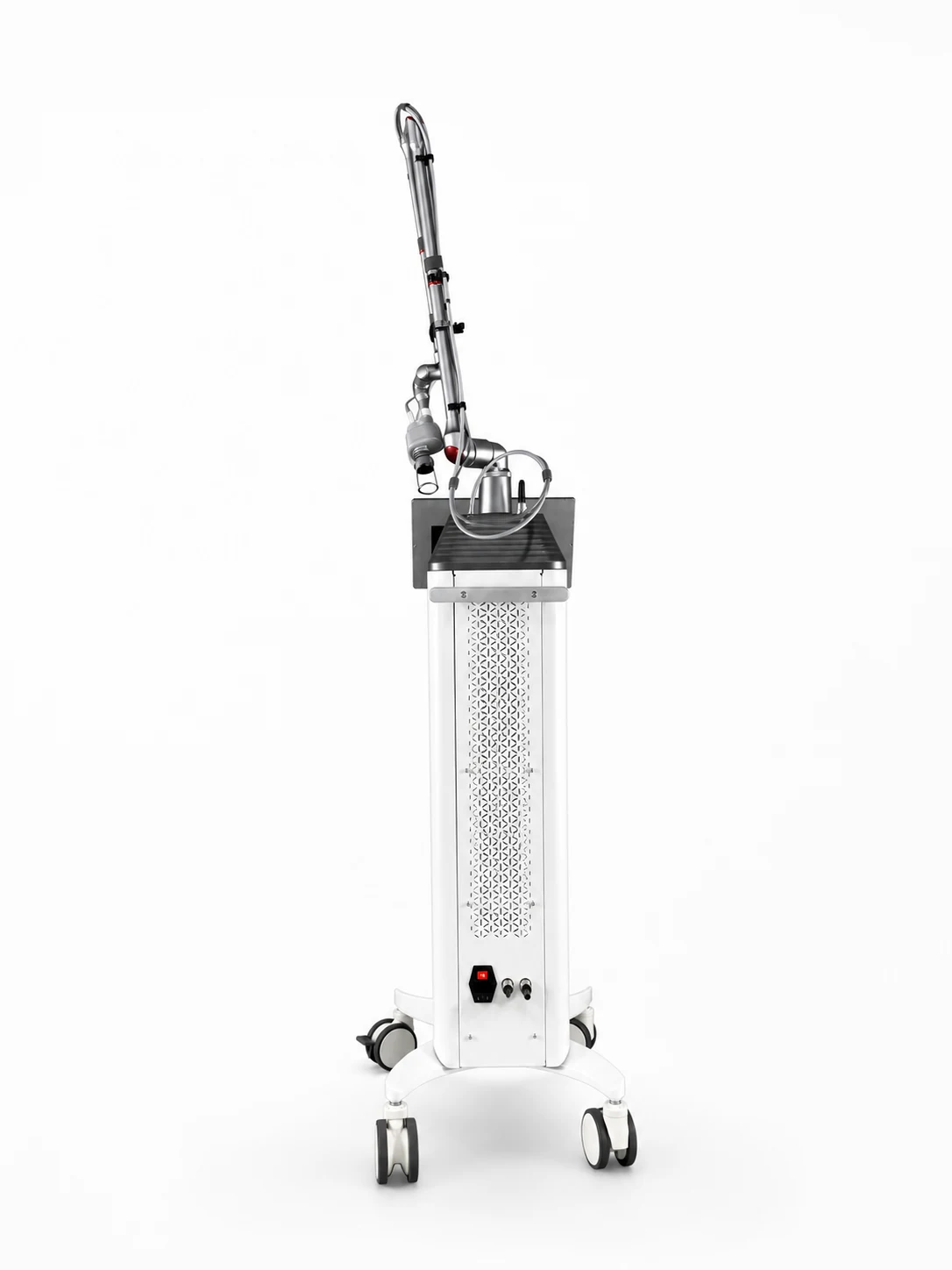

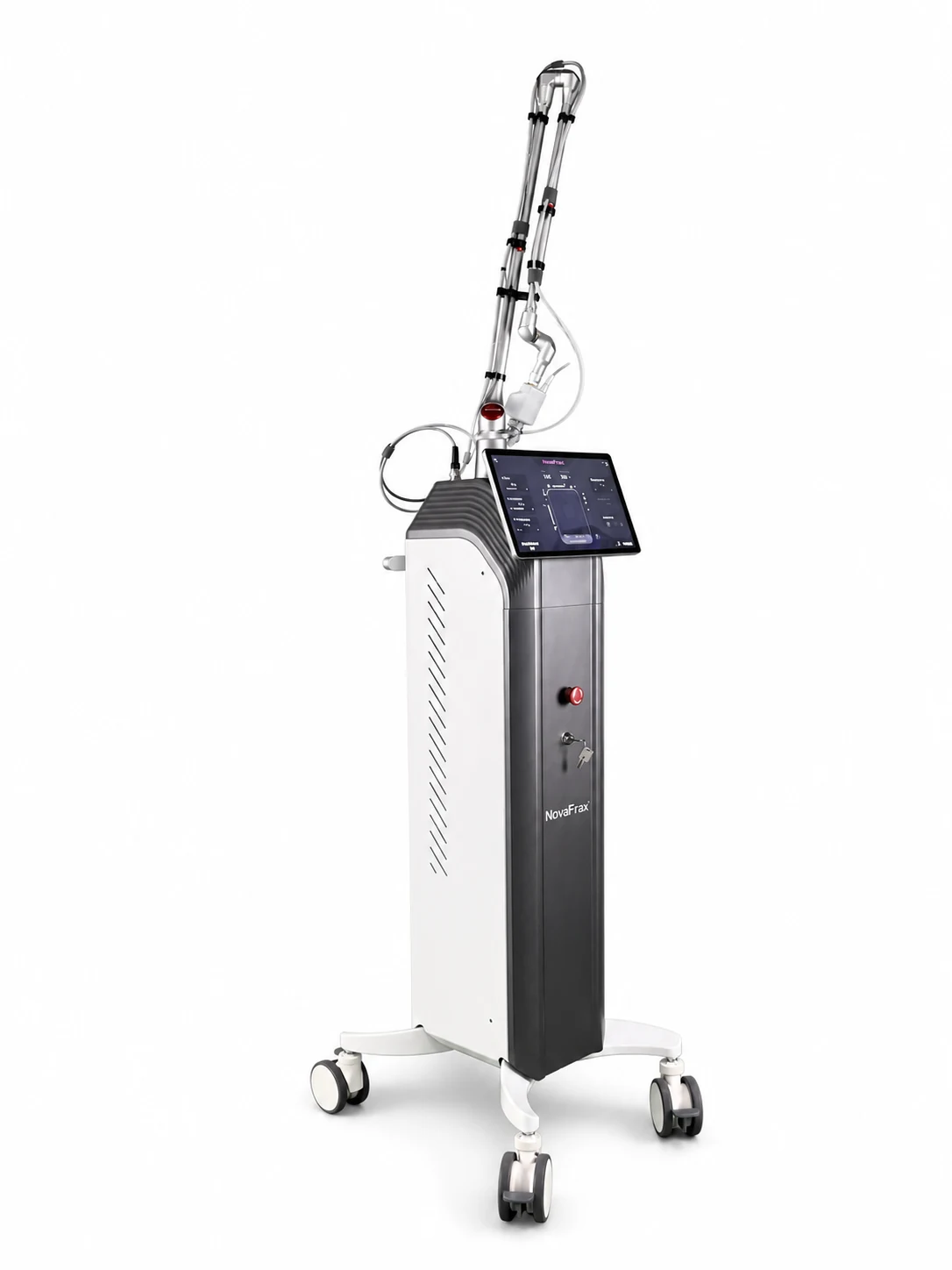

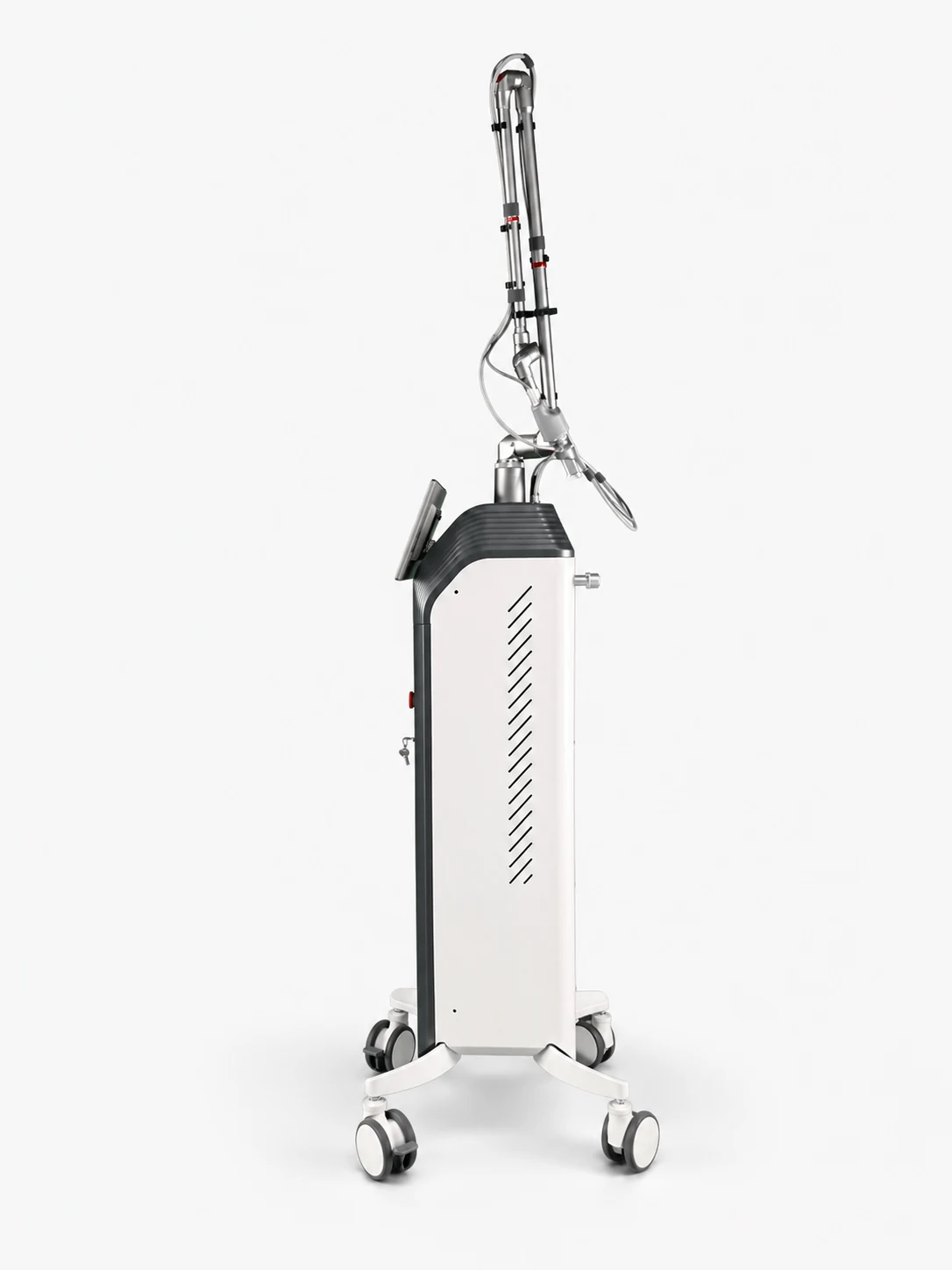

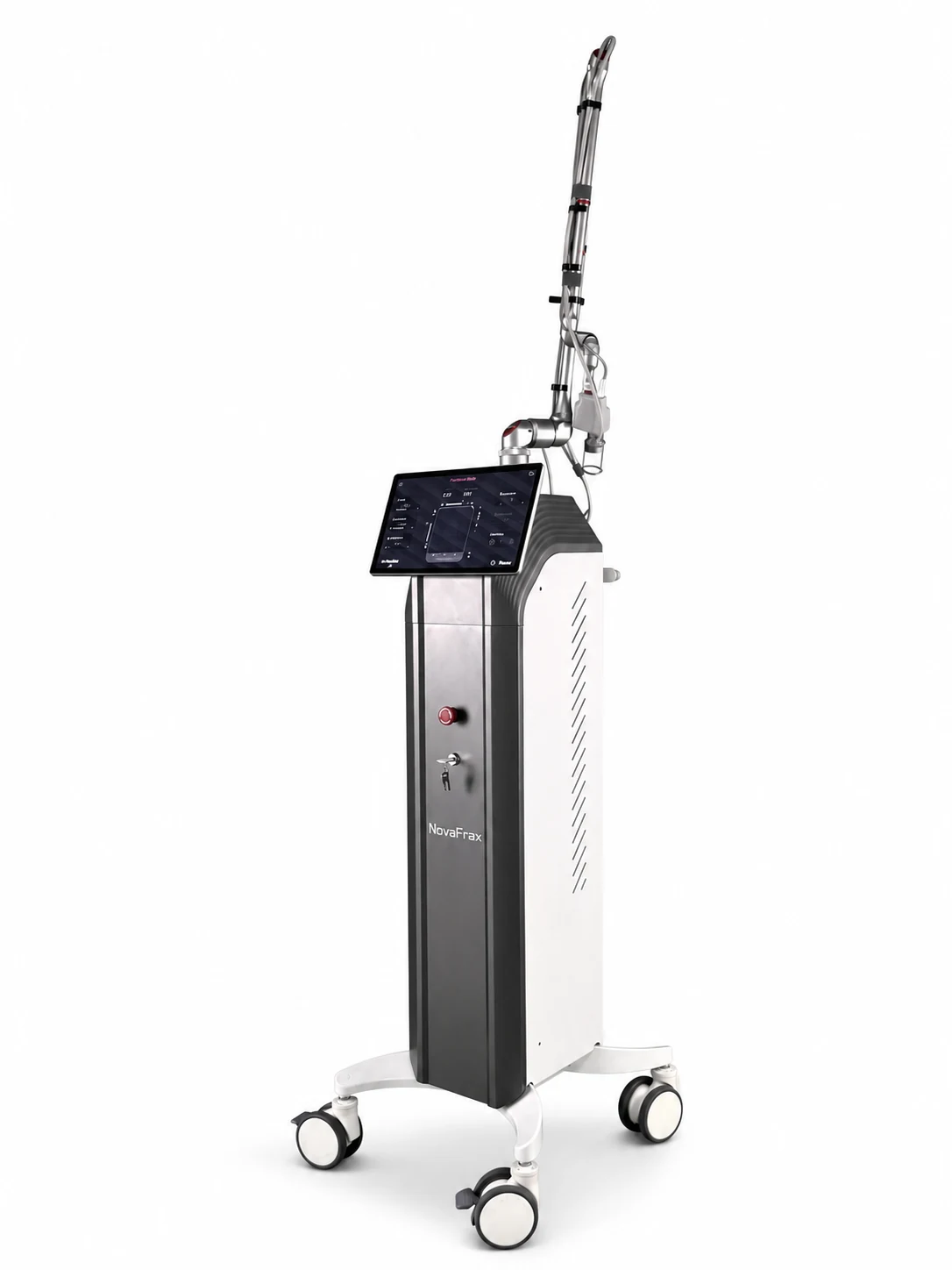

NovaFrax from every angle.
Review the console, treatment hardware, mobile chassis, ventilation and connections.
Connected platform
Multiple modes, one coordinated system.
Applications depend on assessment, training, local regulations and the approved instructions for use.
Fractional mode
- Skin-resurfacing and texture protocols
- Fine-line and wrinkle appearance
- Pore and dyschromia programs
- Scar-appearance protocols
Surgical mode
- Selected pigmented-lesion protocols
- Nevus, lentigo and hyperpigmentation
- Warts and syringoma
- Seborrheic-keratosis protocols
Gynecological mode
- Professional tissue protocols
- Post-delivery rehabilitation support
- Post-menopause care programs
- Selected protocols where locally permitted
Professional workflow
From assessment
to documentation.
The three mode cards above define the application scope; this four-step path keeps the operating sequence clear without repeating the same content.
- 01AssessReview treatment area, suitability and intended protocol.
- 02SelectChoose fractional, surgical or specialized mode.
- 03ConfigureSet pulse, depth, scan pattern and delivery parameters.
- 04DeliverApply the trained protocol and document the session.
System specifications
Technical overview
Wavelength / laser type10600 nm · RF-excited CO₂
Laser power40 W
Dot diameter0.1 mm
Fractional energy0.1–400 mJ
Fractional pulse width0.1–10 ms
Repeat time10
Penetration depthSuperficial · deep · combo
Scan size / shapesUp to 20 × 20 mm · 7 regular + custom
Static scan modesSequence · scatter · random
Dynamic scan modeCoolDynamic
Surgical handpiecesf75 standard · f50 / f100 optional
Surgical working modesCW · single · multi · ultra pulse
Surgical pulse width1–1000 ms
Control / coolingAndroid · air cooling
Dimensions / weight42 × 42 × 120 cm · 43 kg
Laser source lifeMore than 20,000 hours*
*Reference configuration. Confirm rated source life, supplied handpieces and technical data in the final quotation.
Professional use
Designed for responsible operation.
Built-in controls support the operator; training, screening and approved protocols remain essential.
01
Applications depend on professional assessment, operator training and local regulations.
02
Localized 0.1 mm delivery helps limit unnecessary thermal exposure.
03
Select superficial, deep or combination penetration according to protocol.
04
Handpieces, documentation and permitted applications vary by market.
Support beyond installationProduct training, documentation, compliance information and export-team assistance support a confident launch.
